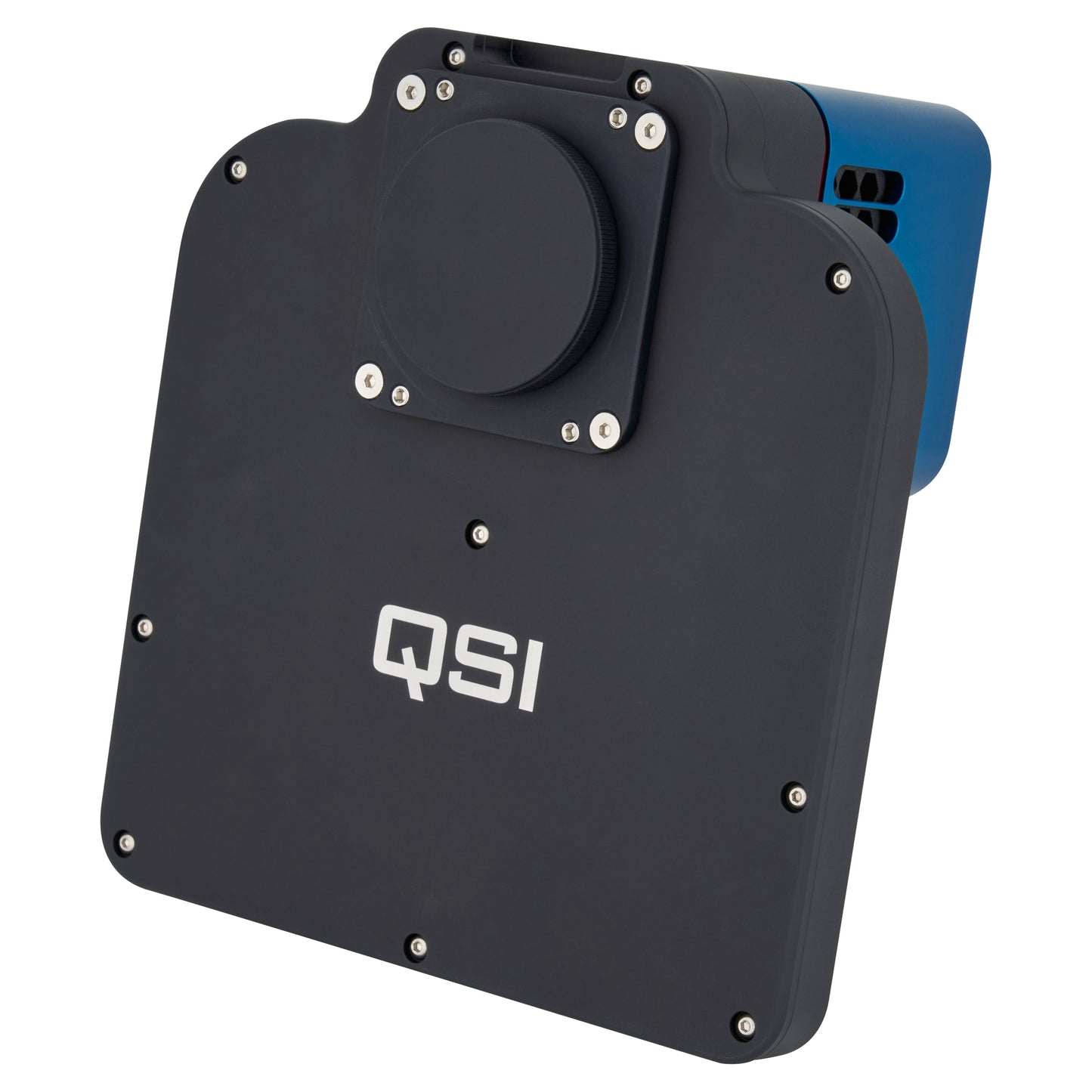

QSI 726 W7
QSI 726 W7
Couldn't load pickup availability
Experience telescope imaging without compromise. The QSI 726 pairs the proven 28mm diagonal IMX571 sensor with intelligent engineering that maximizes optical performance while minimizing operational complexity. Its compact design excels with a wide range of telescopes, delivering sharp celestial imagery with significantly reduced coma and vignetting artifacts.
Engineered for astrophotographers who value both performance and practicality, the QSI 726 features an integrated 36mm filter wheel, 2 USB ports, and auxiliary power output: all working together to simplify your observing workflow. Heavy-duty threaded power connectors provide the dependable and durable connections serious astronomy demands.
Special Offer
Take advantage of this special price for a limited time only! Until January 31st, you get a 20% discount.
Bear in mind that we might run out of stock before the final date.
Due to the holidays and demand hikes, our delivery might take a bit longer than usual.
Specifications
| Image Sensor | Sony IMX571 mono CMOS sensor |
| Resolution | 6244 x 4168 |
| Pixel Pitch | 3.76 µm |
| Sensor Size | 28.3mm diagonal (23.5mm x 15.7mm) |
| Full Well | 51,000 e- |
| Read Noise | 1.7 e- (typical |
| Cooling Setpoin (at ambient of 20º C) | - 25ºC |
| Frame Rate | 4 FPS (full frame image) |
| Mount Type | M54 x 0.75 |
| ADC | 16 bit |
| Reading Mode | Rolling shutter |
| Exposure Range | 1 ms - 24 hours |
| Dark Current | 0.0008 e-/p/s |
| Filter Wheel | Mechanical indexing for reproducible flats, Filterwheel for 36mm filters - 7 positions |
| Back Focus | 31mm (can be reduced by removing the adaptor (- 4mm) |
| Computer System Requirements | Windows 10+, Linux, USB 3.0, 8GB Ram, 64 bit Operating System |
| Accessories (optional) | Off-Axis guide unit |
| Weight | 1590g |
| Includes | Locking screws, INPUT & OUTPUT |
700 Series – QSI powered by Atik Cameras
In two decades, the world of astrophotography has evolved beyond recognition. Today, QSI Imaging is powered by Atik Cameras and features back-illuminated CMOS sensors with native 16-bit digitization, delivering exceptional quantum efficiency of 90% and lightning-fast readout speeds of 120 million pixels per second over USB 3, a performance that was once unimaginable.
Despite these incredible advancements, what remains unchanged is our commitment to integrated design, meticulous attention to detail, and bulletproof reliability.
With the 700 Series, we’ve taken our best technology and refined it for optimal performance. Each camera is equipped with mechanically indexed filter wheels, ensuring the most precise positioning for perfect flat fields.
The fused silica window is dew-resistant and coated on both sides with a high-transmission anti-reflective coating, reducing halos and maximizing image clarity. A window heater is also available to cater for extreme environmental situations. The cameras also feature a highly efficient 2-stage Peltier cooler, drawing less current while providing superior cooling performance compared to other models. They are compatible with wide-format OAGs.
