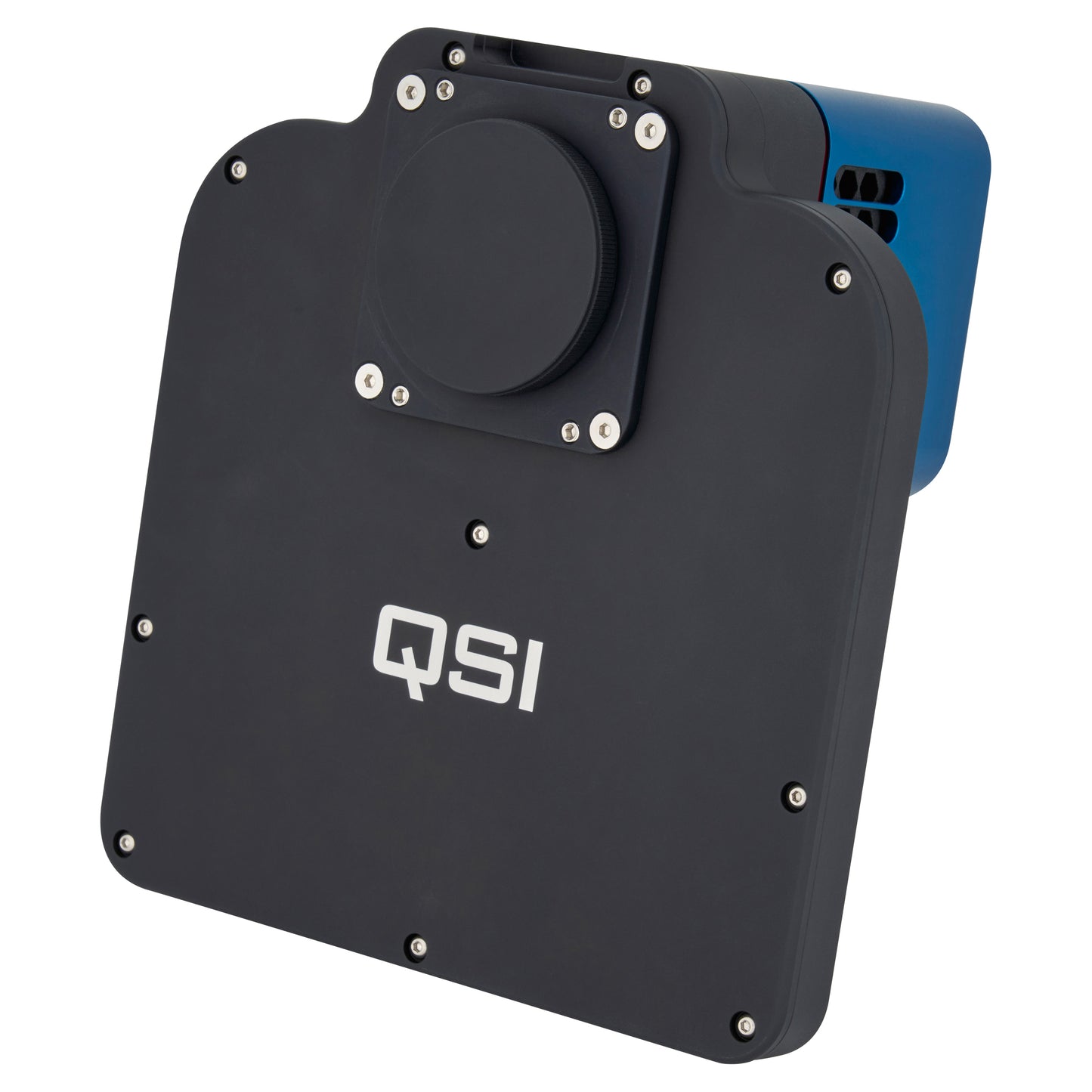

QSI 760 W7
QSI 760 W7
Couldn't load pickup availability
Discover imaging excellence with the QSI 760, our flagship camera powered by the full-frame IMX455 sensor - the astronomers' choice for premium performance. This exceptional sensor delivers industry-leading image quality and sensitivity, enabling serious astrophotographers to capture celestial wonders with unprecedented clarity and detail.
Engineering excellence extends throughout the QSI 760's design. The integrated 2"/50mm filter wheel minimizes back focus, while maximizing compatibility with focal reducers and ensuring optimal performance across diverse optical configurations. The integrated connectivity, featuring dual USB 2.0 ports and auxiliary power output, eliminates cable chaos. Robust threaded power connectors guarantee reliability and stability even during the longest observing sessions.
Special Offer
Take advantage of this special price for a limited time only! Until January 31st, you get a 20% discount.
Bear in mind that we might run out of stock before the final date.
Due to the holidays and demand hikes, our delivery might take a bit longer than usual.
Specifications
| Image Sensor | Sony IMX455 mono CMOS sensor |
| Resolution | 9576 x 6380 |
| Pixel Pitch | 3.76 µm |
| Sensor Size | 43.3mm diagonal (36mm x 24mm) |
| Full Well | 51,000 e- |
| Read Noise | 1.2 e- (typical) |
| Cooling Setpoin (at ambient of 20º C) | - 25ºC |
| Frame Rate | 2 FPS (full frame image) |
| Mount Type | M54 x 0.75 |
| ADC | 16 bit |
| Reading Mode | Rolling shutter |
| Exposure Range | 1 ms - 24 hours |
| Dark Current | 0.0005 e-/p/s |
| Filter Wheel | Mechanical indexing for reproducible flats, Filterwheel for 2” or unmounted 50mm filters - 7 positions |
| Back Focus | 31mm (can be reduced by removing the adaptor (- 4mm) |
| Computer System Requirements | Windows 10+, Linux, USB 3.0, 8GB Ram, 64 bit Operating System |
| Accessories (optional) | Off-Axis guide unit |
| Weight | 1820g |
| Includes | Locking screws, INPUT & OUTPUT |
700 Series – QSI powered by Atik Cameras
In two decades, the world of astrophotography has evolved beyond recognition. Today, QSI Imaging is powered by Atik Cameras and features back-illuminated CMOS sensors with native 16-bit digitization, delivering exceptional quantum efficiency of 90% and lightning-fast readout speeds of 120 million pixels per second over USB 3, a performance that was once unimaginable.
Despite these incredible advancements, what remains unchanged is our commitment to integrated design, meticulous attention to detail, and bulletproof reliability.
With the 700 Series, we’ve taken our best technology and refined it for optimal performance. Each camera is equipped with mechanically indexed filter wheels, ensuring the most precise positioning for perfect flat fields.
The fused silica window is dew-resistant and coated on both sides with a high-transmission anti-reflective coating, reducing halos and maximizing image clarity. A window heater is also available to cater for extreme environmental situations. The cameras also feature a highly efficient 2-stage Peltier cooler, drawing less current while providing superior cooling performance compared to other models. They are compatible with wide-format OAGs.
